Plane /Slice Tool

Plane /Slice Tool

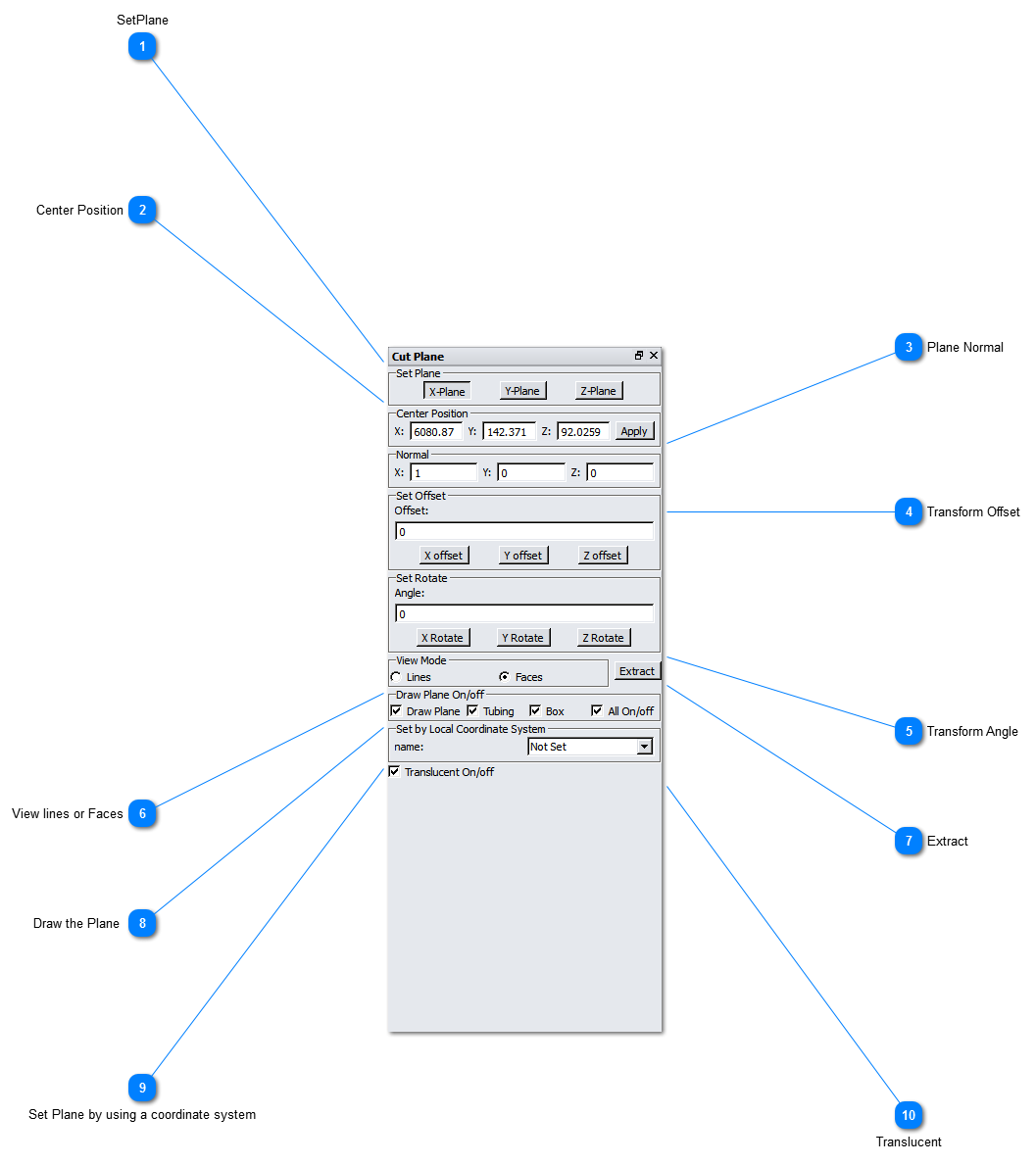

1

SetPlane

1. SetPlane
Use the Set Plane tool to choose  a default plane
2

Center Position

2. Center Position
Use the Center Position to define the origin of the plane
3

Plane Normal

3. Plane Normal
Use the normal tool if an arbitrary plane is needed for the cutting plane
4

Transform Offset

4. Transform Offset
Transform  the Plane by using an offset
5

Transform Angle

5. Transform Angle
Transform the Plane by rotating an angle
6

View lines or Faces

6. View lines or Faces

7

Extract

7. Extract
Use this command to perform the plane extraction of the mesh
8

Draw the Plane

8. Draw the Plane
Control the way the plane is drawn
9

Set Plane by using a coordinate system

9. Set Plane by using a coordinate system

10

Translucent

10. Translucent
Make Plane translucent
