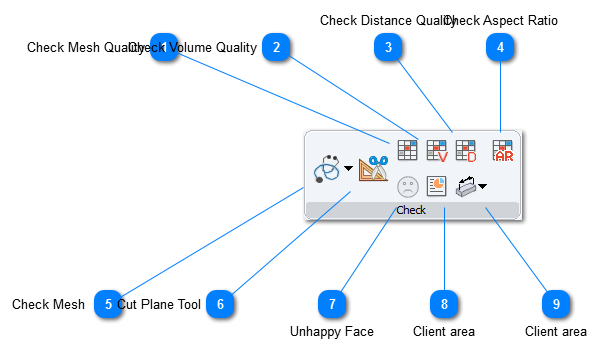

Check Panel

Check Panel
1

Check Mesh Quality

1. Check Mesh Quality
Display the Mesh Quality Window
2

Check Volume Quality

2. Check Volume Quality
Display the Mesh Volume Window
3

Check Distance Quality

3. Check Distance Quality
Distance between Mesh and Geometry
4

Check Aspect Ratio

4. Check Aspect Ratio
Display the mesh aspect ratio
5

Check Mesh

5. Check Mesh
Check the mesh for problems., Use DropDownlist for control on which checks are performed
6

Cut Plane Tool

6. Cut Plane Tool
Display the Cut Plane window
7

Unhappy Face

7. Unhappy Face
Display the unmeshed faces
8

Client area

8. Client area
Display the textual report for mesh quality
9

Client area

9. Client area
Measure distance between two points
