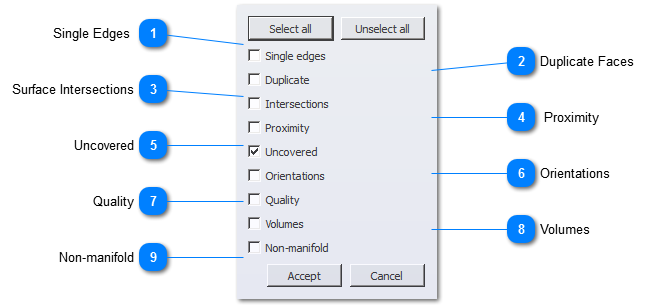

Check Mesh Setup

Check Mesh Setup
1

Single Edges

1. Single Edges
Check Mesh for any single edges, ie edges which are only connected to one surface
2

Duplicate Faces

2. Duplicate Faces
Check Mesh for double faces
3

Surface Intersections

3. Surface Intersections

4

Proximity

4. Proximity
Use this check for any faces too close to each other to be volume meshed
5

Uncovered

5. Uncovered
Only faces on the boundary should be uncovered. Check for any uncovered face not on the boundary
6

Orientations

6. Orientations
Check for left handedness
7

Quality

7. Quality
Perform some basic quality checks
8

Volumes

8. Volumes
Check for any negative volume elements
9

Non-manifold

9. Non-manifold
Check for any non manifold  mesh connections
