Auto Repair Panel

Auto Repair Panel

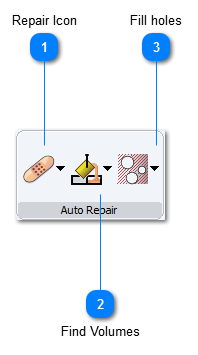

The Auto Repair Panel contains tools to prepare your CAD data for meshing. If you have a clean model you won't need to use any of them. Most models should be setup for meshing just by pressing the repair icon .
If that doesn't work for some reason, you can perform the steps to repair your model one at a time.

1

Repair Icon

1. Repair Icon
Use this button to access the repair menu
2

Find Volumes

2. Find Volumes
Use this button to find the models volumes and all outer surfaces.
3

Fill holes

3. Fill holes
