Swap Edges
Swap Edges
You can use the Swap Edges Tool to change the edges of the mesh. Select an edge of a triangle in the mesh, then use the Swap Edges Tool. The edge will switch orientations.

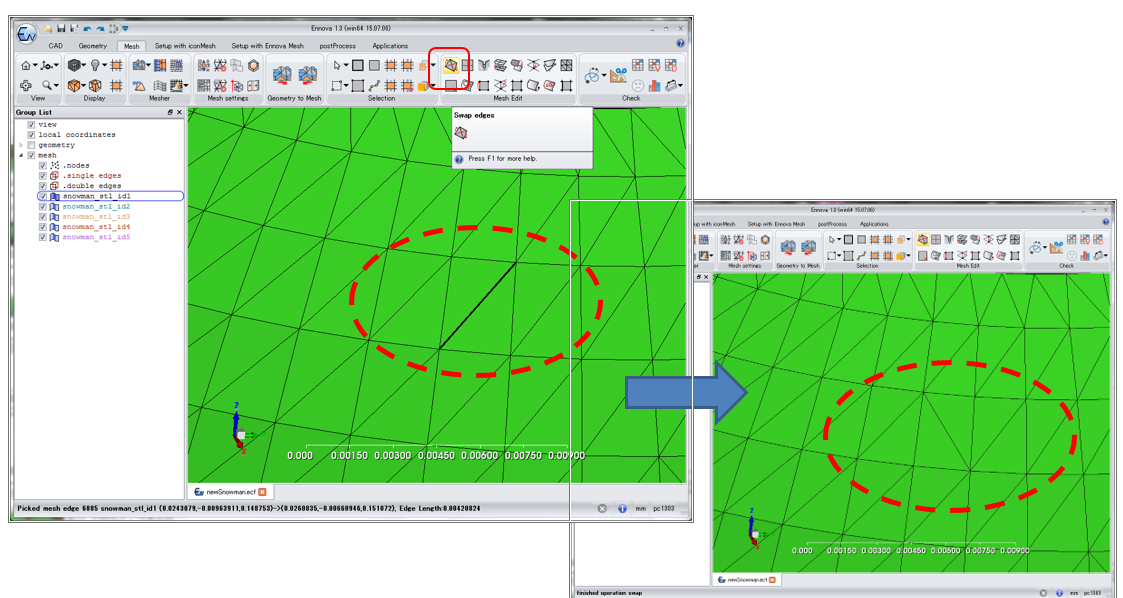

Selected edge before swapping edges:
<>
Selected edge after swapping edges:
Example here the bold edge is reversed
