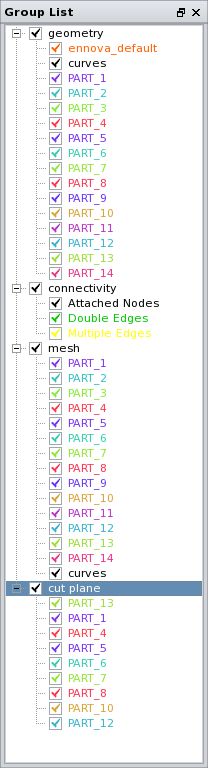

The Group List panel contains the group list tree, which shows you each of the objects in your model. You can quickly show or hide any object using the checkbox next to the object's name. You can easily find the object by matching the color in the checkbox and the real object color.You can expand or collapse the nodes of the tree, set color for the object ,delete objects.
The Group List panel mainly contains object of Geometry , Connectivity , Mesh , Cut plane , Diagnostics;
The tree contains three main nodes called Geometry , Connectivity & Mesh.You can check and uncheck to chane the visibility of the object.
Changing the visibility of the objects (Geometry)
There are three methods for setting the visibility of objects in the window:
Right-click an object in the window and select Hide from the context menu. Similarly you can view all the hidden item by Right-click in the window and selecting Show Hidden Items from the context menu.
Uncheck the box in the tree to hide the object in the window. You can also right-click an object in the window and select Hide to turn the visibility of the object off.
Check the box next to the object in the Structure tree to set the visibility of the object to the layer visibility.
Deleting an object (Geometry)
Right-click an object in the Group List panel and select the Delete from the context menu to delete the object.
Setting color to an Geometry object (Geometry)
Right-click an object in the Group List panel and select the Set color from the context menu ,select the color you wish to apply to an object.
The same color will be applied to the checkbox and the object name in the group list.
Exploring Connectivity
The connectivity node contains three main sub-nodes. Visibility of it is toggled by checking & unchecking the box in the tree.
Attached Nodes shows all the nodes which connects the Edges.
Double Edges shows all the edges which overlap eachh other twice.
Multiple Edges shows all the edges which overlap each other more than twice.
Mesh
This node contain name of all the objects which are meshed sucessfylly. The visibility of each meshed object is toggled by checking & unchecking the box in the tree.
Exploring Diagnostics
The diagnostics node contains two main sub-nodes viz. Single Edge , Feature Edge & Multiple Edge.
